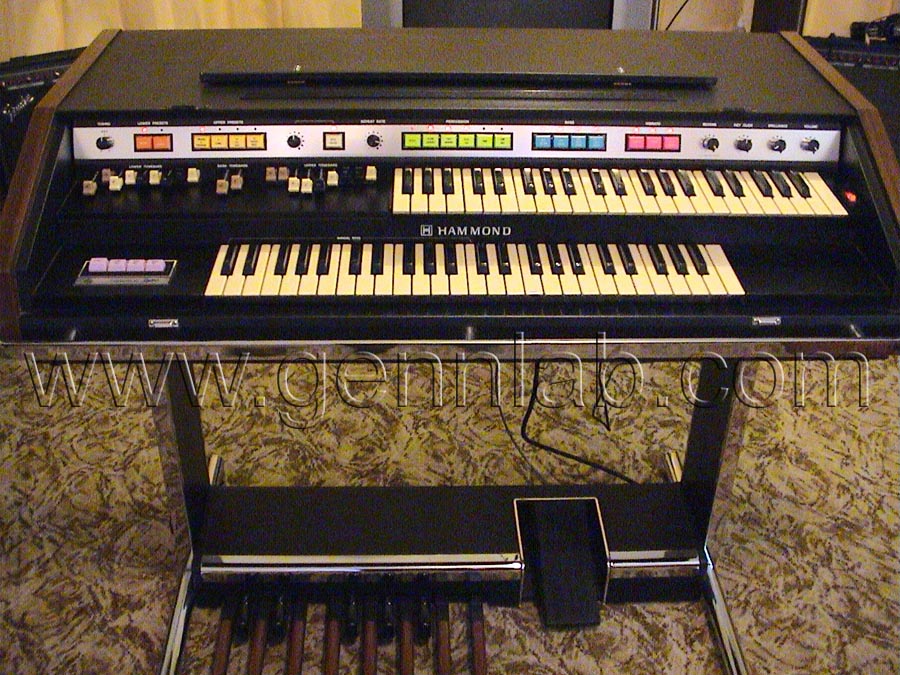

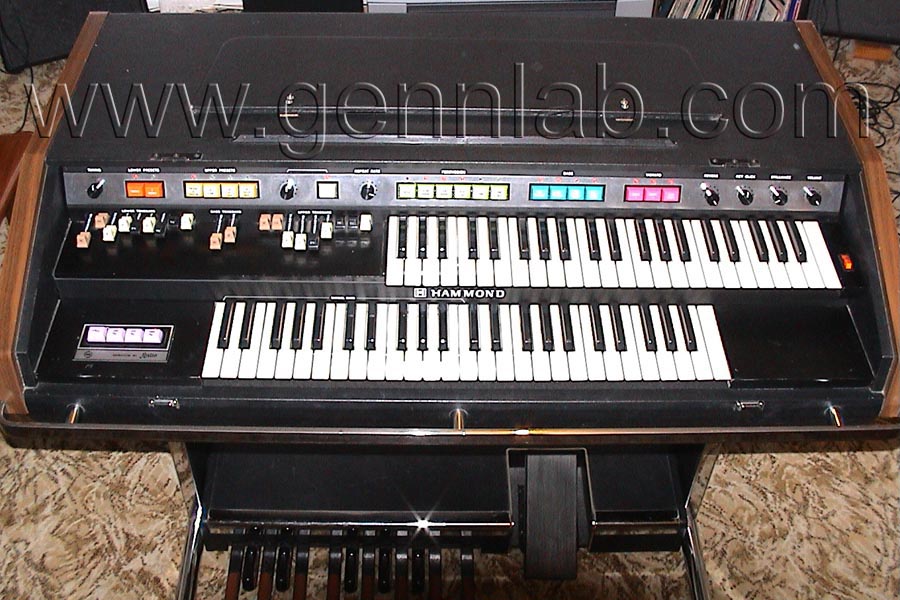

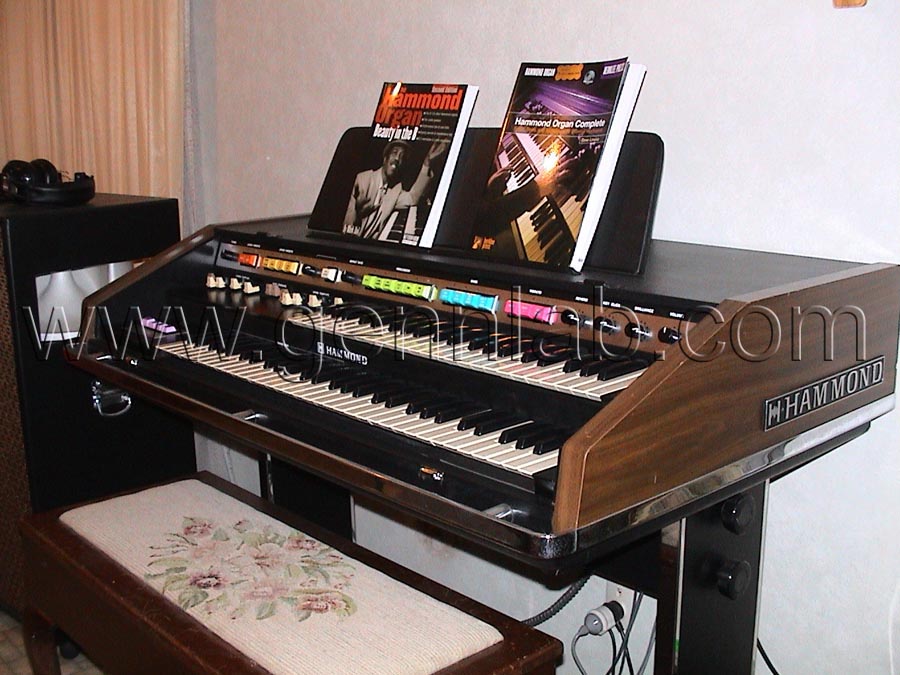

HAMMOND B-200 (18250K) COMBO DRAWBAR ORGAN & LESLIE DOUBLE CHANNEL CABINET
In excellent working condition, recently serviced and adjusted to the factory specs.
B-200 features
STYLE: Portable professional stage organ designed for travelling bands.
The analogue transistor version of B3 with identical sound + internal reverb
and individual routing for each manual (CH1, CH2 or both).
KEYBOARDS: Upper 44 (F-C), Lower 61 (C-C), Pedal 13 removable.
DRAWBARS: Upper 9, Lower 9, Pedals 2.
PRESETS: Upper 3, Lower 1, Pedals: Bass, Bass Guitar, Bass Guitar Accent, Bass to Low Manual Sustain
PERCUSSION: Second Harmonic, Third Harmonic, Decay Fast, Piano, Piano Solo, Repeat, Repeat Rate
VIBRATO: Vibrato I, Vibrato II, Delay Vibrato
REVERB
KEY CLICK
FOLDBACK
CONTROLS: Pitch , Repeat Rate, Upper Sustain, Reverb, Key Click, Brilliance, Volume.
LESLIE CONTROLS: Slow/Fast, Slow/Fast on Expression Pedal, Lower ON/OFF, Upper ON/OFF, Chorus ON/OFF.
CONNECTORS: Pre-Expression IN Jack, Post-Expression IN Jack, CH1 (Rotary) OUT Jack, CH2 (Stationary) OUT Jack, CH1+CH2 MIX OUT Jack, HEAD PHONE OUT Jack, 11-pin Leslie Connector, Pedal Board Connector.
DIMENSIONS: 1207Wx724Dx778H mm.
WEIGHT: 54 kg organ, 12kg Pedal board, 18.4 kg disassemblable stand.
In excellent working condition, recently serviced and adjusted to the factory specs.
B-200 features
STYLE: Portable professional stage organ designed for travelling bands.
The analogue transistor version of B3 with identical sound + internal reverb
and individual routing for each manual (CH1, CH2 or both).
KEYBOARDS: Upper 44 (F-C), Lower 61 (C-C), Pedal 13 removable.
DRAWBARS: Upper 9, Lower 9, Pedals 2.
PRESETS: Upper 3, Lower 1, Pedals: Bass, Bass Guitar, Bass Guitar Accent, Bass to Low Manual Sustain
PERCUSSION: Second Harmonic, Third Harmonic, Decay Fast, Piano, Piano Solo, Repeat, Repeat Rate
VIBRATO: Vibrato I, Vibrato II, Delay Vibrato
REVERB
KEY CLICK
FOLDBACK
CONTROLS: Pitch , Repeat Rate, Upper Sustain, Reverb, Key Click, Brilliance, Volume.
LESLIE CONTROLS: Slow/Fast, Slow/Fast on Expression Pedal, Lower ON/OFF, Upper ON/OFF, Chorus ON/OFF.
CONNECTORS: Pre-Expression IN Jack, Post-Expression IN Jack, CH1 (Rotary) OUT Jack, CH2 (Stationary) OUT Jack, CH1+CH2 MIX OUT Jack, HEAD PHONE OUT Jack, 11-pin Leslie Connector, Pedal Board Connector.
DIMENSIONS: 1207Wx724Dx778H mm.
WEIGHT: 54 kg organ, 12kg Pedal board, 18.4 kg disassemblable stand.
|
|
|
|
Click on any picture to enlarge
[Home] [Contact us]
HAMMOND B-200 (18250K) Service Manual
Purchase price for the Manual file in PDF format $39.00.
Click on the PayPal button below to pay for downloading of the Manual file.
We will send you a link and a password to download a .zip file with compressed .pdf file. High resolution scanning 41,384 KB.
Click on the PayPal button below to pay for downloading of the Manual file.
We will send you a link and a password to download a .zip file with compressed .pdf file. High resolution scanning 41,384 KB.
